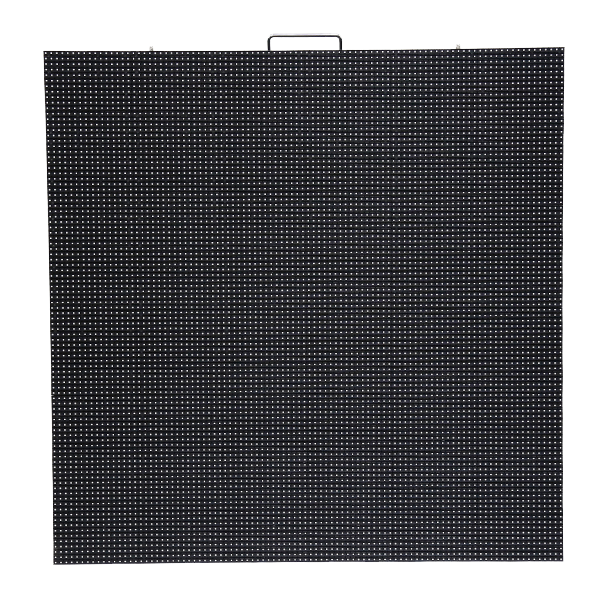

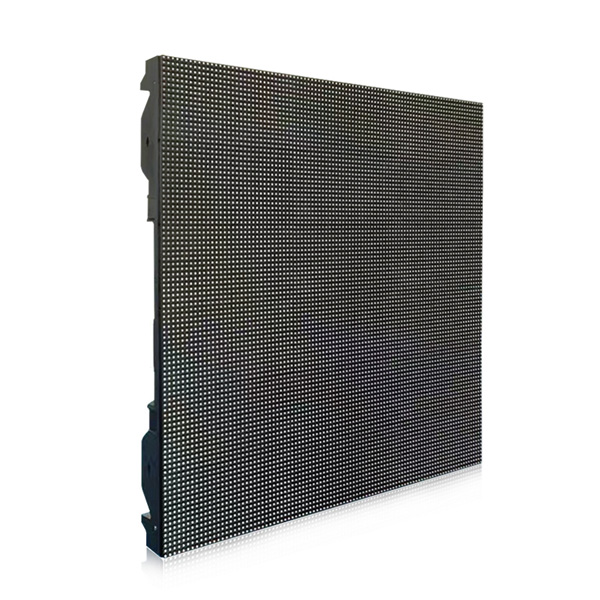

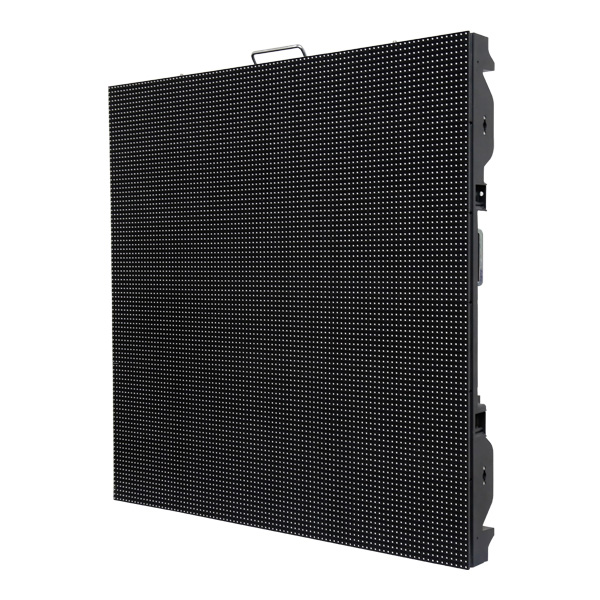

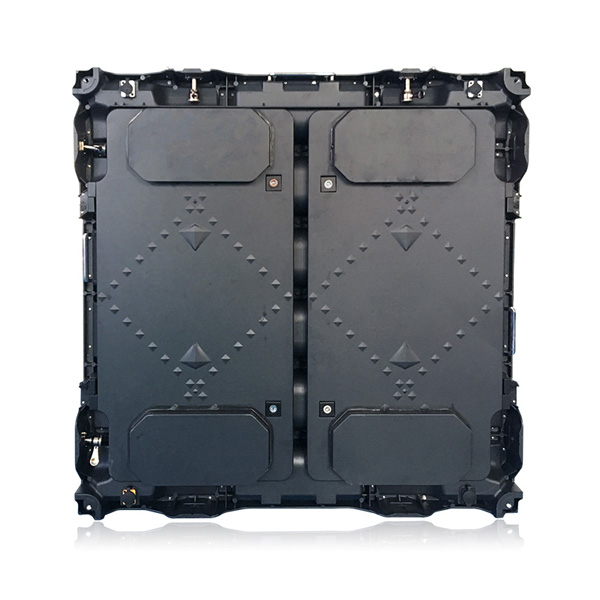

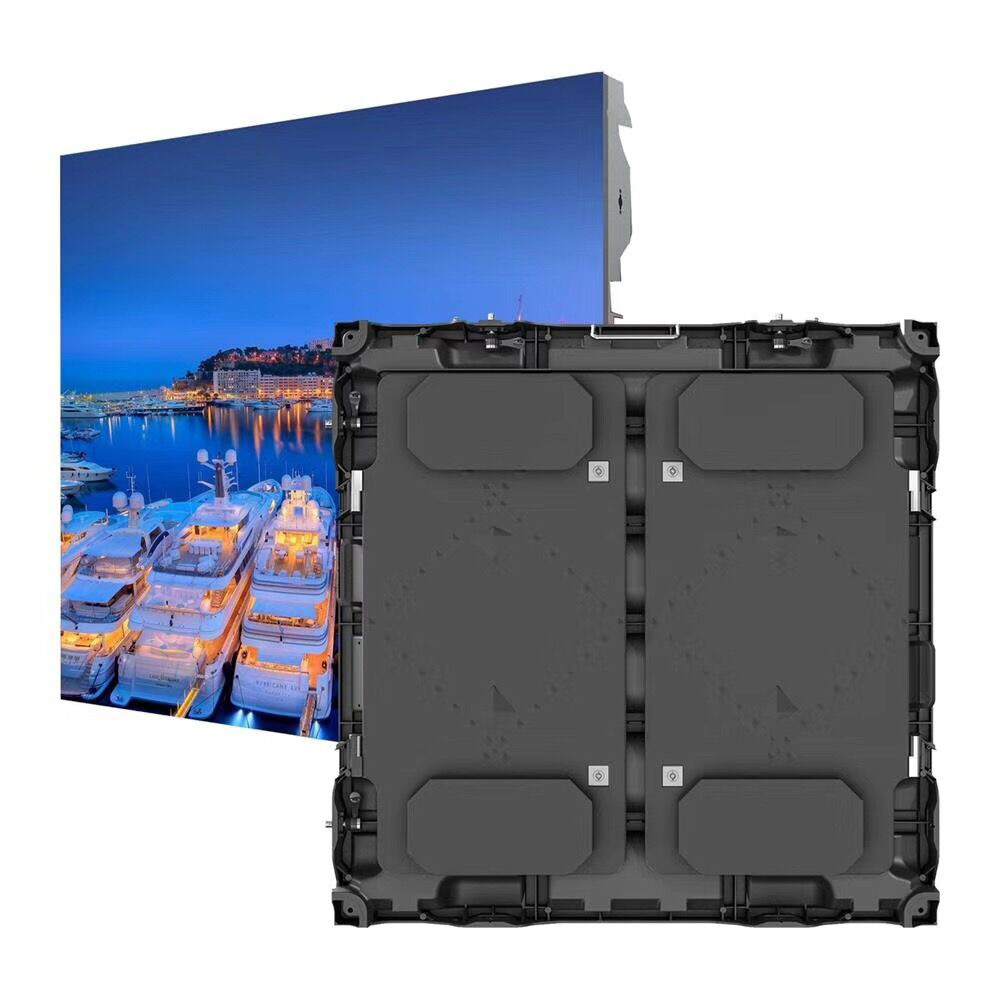

OF SERIES-OUTDOOR FIXED LED SCREEN SLIM DESIGN
Model: OF3.076, OF3.3, OF4, OF5, OF6, OF6.66, OF8, OF10

Products Parameter

Model OF3.076 OF3.3 OF4 OF5 OF6 OF6.66 OF8 OF10
Pixel Pitch(mm) 3.076mm 3.3mm 4mm 5mm 6mm 6.66mm 8mm 10mm
Pixel Configuration SMD1415 SMD1921 SMD1921 SMD2525 SMD3535 SMD3535 SMD3535 SMD3535
Pixel Density(pixel/sqm) 105625 90000 62500 40000 27777 20736 15625 10000
Brightness(cd/sqm) 5500-6000 5500-6000 6500 6000 6500 5500-6000 5500-6000 6500
Scanning Method 1/13 1/13 1/8 1/8 1/4 1/5 1/4 1/2
Module Dimension(mm) 320*160 320*160 256*128 320*160 192*192 320*160 320*160 320*160
Module Resolution(pixels) 104*52 96*48 64*32 64*32 32*32 48*24 40*20 32*16
Cabinet Dimension(mm) 960*960*110 960*960*110 1024*1024*120 960*960*110 960*960*120 960*960*110 960*960*110 960*960*110
Cabinet Resolution(pixels) 312*312 288*288 256*256 192*192 160*160 144*144 120*120 96*96
Max power consumption (W/sqm) 900 900 1000 750 560 790 800 750
Average power consumption (W/sqm) 400 400 300 350 220 260 300 265
Cabinet Material Steel or Die Cast Magnesium Steel or Die Cast Magnesium Steel Steel or Die Cast Magnesium Steel Steel or Die Cast Magnesium Steel or Die Cast Magnesium Steel or Die Cast Magnesium
Cabinet weight(kg) 30
Refresh rate(HZ) 1920 or 3840 1920 or 3840 1920 or 3840 1920 or 3840 1920 or 3840 1920 or 3840 1920 or 3840 1920 or 3840
Viewing angle H:120 V:120
Protection grade(fromt/back) IP65
Input Voltage(V) 110V/220V, 50/60Hz
Grey Level 14-16bit
Working Temperature -20-50℃
Working Humidity 10%-90%
