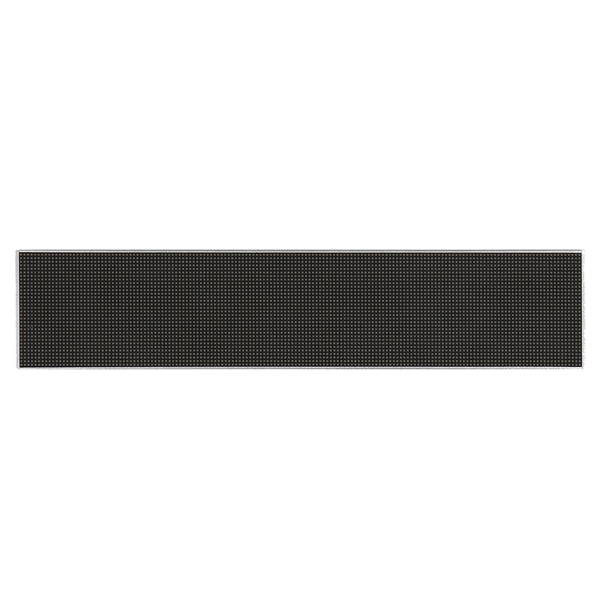

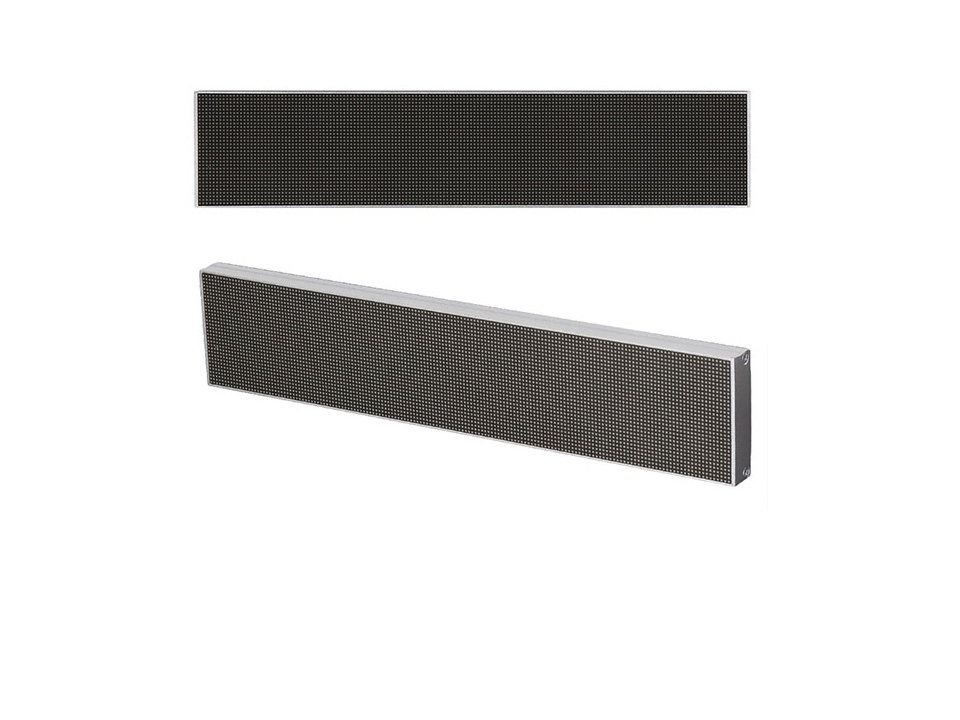

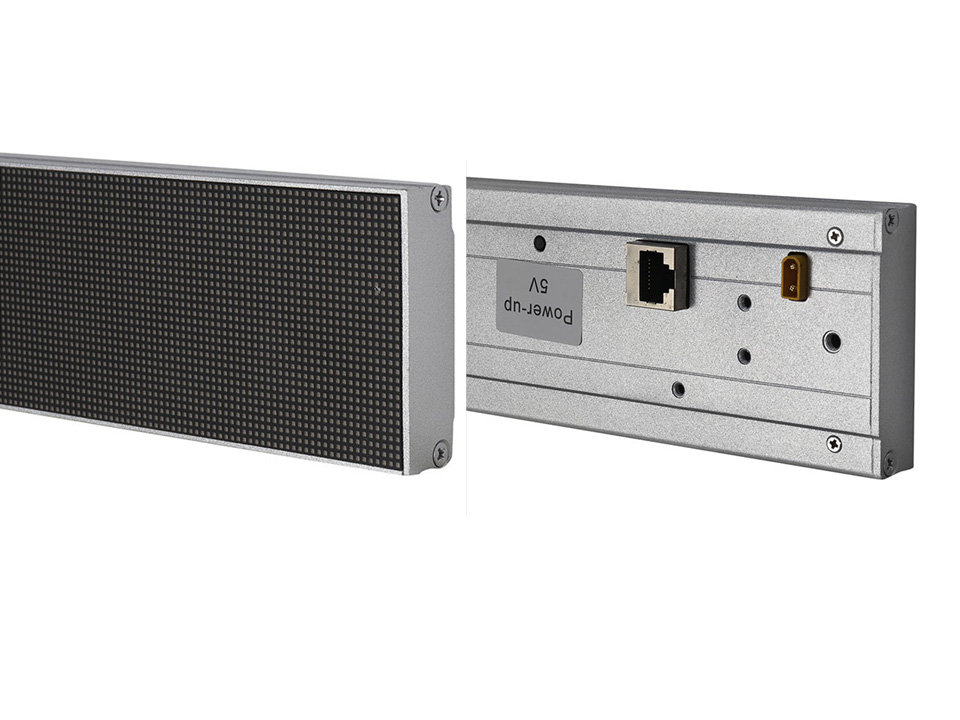

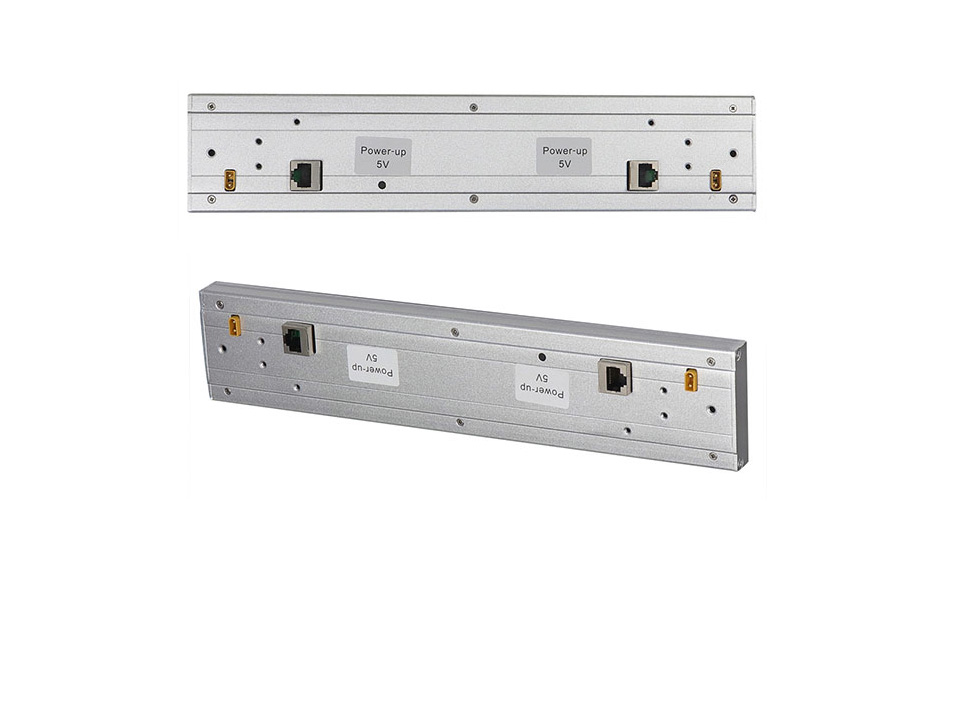

GOB SERIES -GOB SHELF SCREEN
Model: GOB300, GOB600, GOB1200

Products Parameter

Model

GOB300

GOB600

GOB1200

Pixel Pitch(mm)

1.875

Pixel Configuration

SMD1415

Pixel Density(pixel/sqm)

284444

Brightness(cd/sqm)

600

Scanning Method

1/32

Cabinet Dimension(mm)

300*60

600*60

1200*60

Refresh rate(HZ)

3840

Cabinet Resolution(pixels)

160*32

320*32

640*32

Cabinet Material

Aluminum Profile

Cabinet N.W(kg)

0.40

0.75

1.10

Viewing angle

H:160 V:140

Protection grade(fromt/back)

IP54

Max power consumption (W/pc)

20

40

80

Average power consumption (W/sqm)

8

16

32

Input Voltage(V)

110V/220V, 50/60Hz

Grey Level

14bit

Working Temperature

-20-50℃

Working Humidity

10%-90%

Life Span of LED chip

>100000 hours
